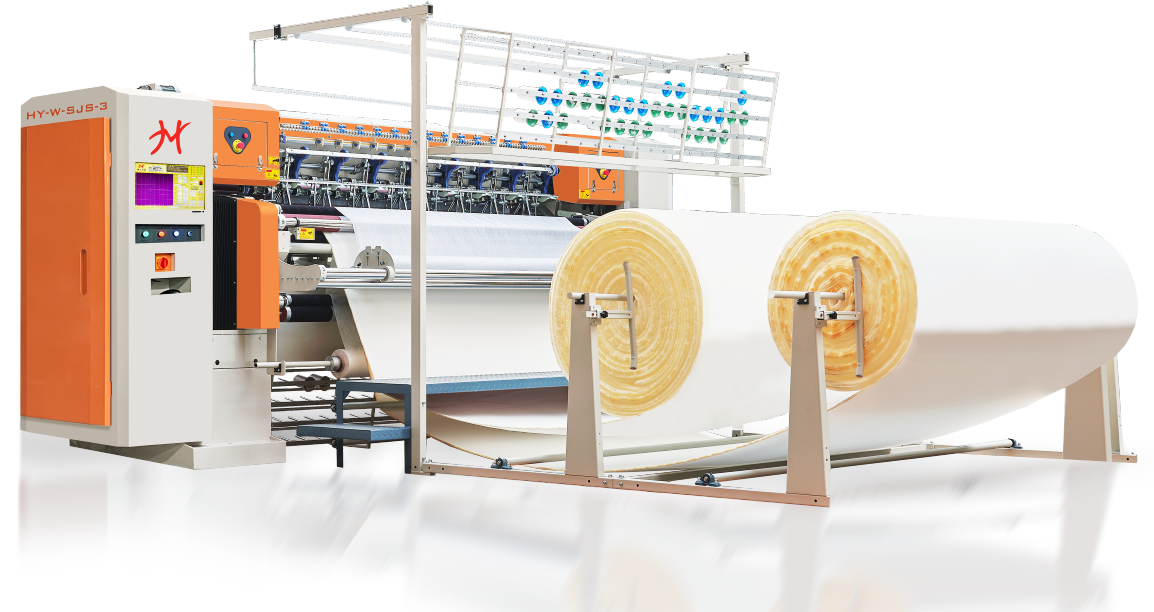

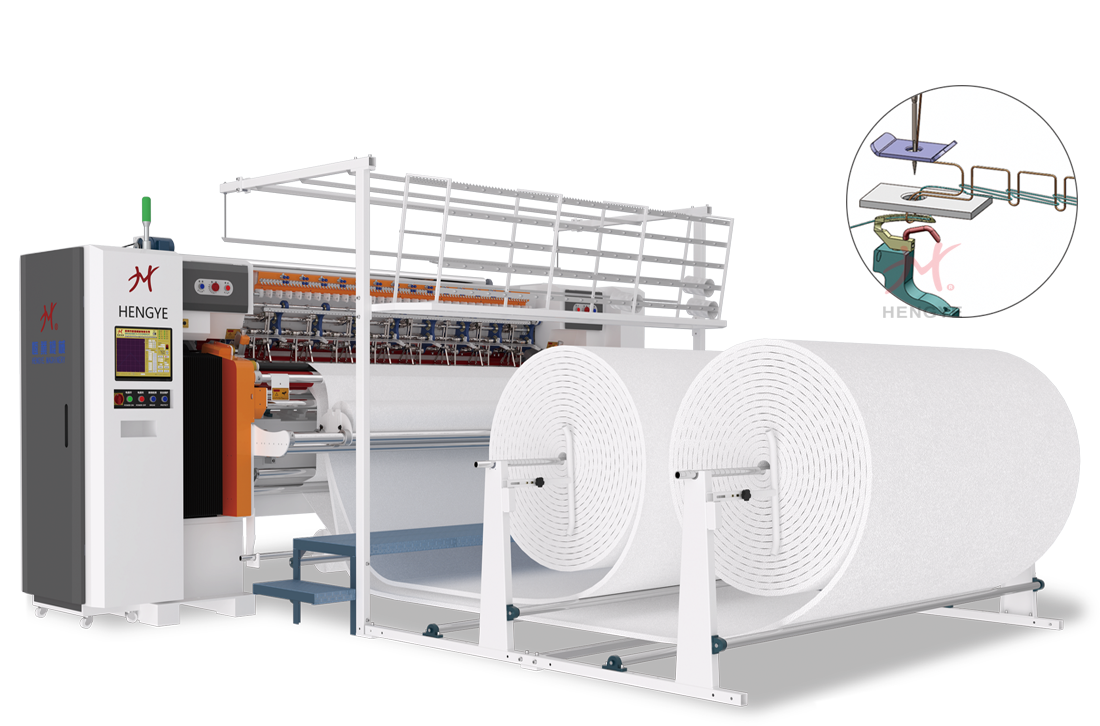

NEW HY-W-SJS-3 Computerized Chain Stitch Multi-needle Quilting Machine

[ CE-Certification | widening | high efficiency ]

Purpose: It is widely used for quilting high-quality mattresses, quilt covers, and household  ornaments. Different patterns are available.

1】Servo system is used in X-Y-Z axis, that can improve 30% production for independent patterns;

2】Newly reinforced structure makes it work more stably;

3】Raising supporting board makes it more convenient to operate and maintain;

4】Y axis reduction gearbox makes it work more fluently with low-noise;

5】New type retainer frame structure,with the advantages of low noise;

6】Optimized the mechanical structure make the higher speed and more production;

7】Press plate lifting can be adjusted by one-button according to different material thickness;

8】More tight thread stitches make the quilting pattern with stronger third dimension;

9】Needle bar and press plate are controlled by a doubles-winging  device without cam avoiding lubrication and dirtying of material;

10】Multi-span and independent patterns(360°、180° patterns are available);

11】Automatic stop motion control in case the top thread or the bottom thread breaks, automatic needle-lifting and CNC speed adjustment;

12】CE  certificate;

13】Outstanding features such as high rigidity,high running speed,low vibration and noise.

14】New generation of CNC system,high precision quilting,dispense with too much parameter adjustment or pattern modification during quilting;

15】Easy preparation of CAD drawings extremely precise;

16】Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes;

17】Fault detection function for ease of determining the running state of the machine at any given time;

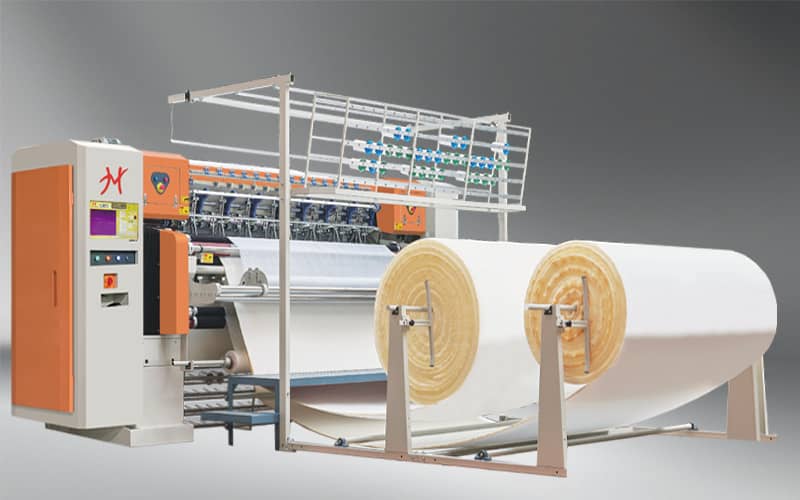

Appearance 1: split electric box

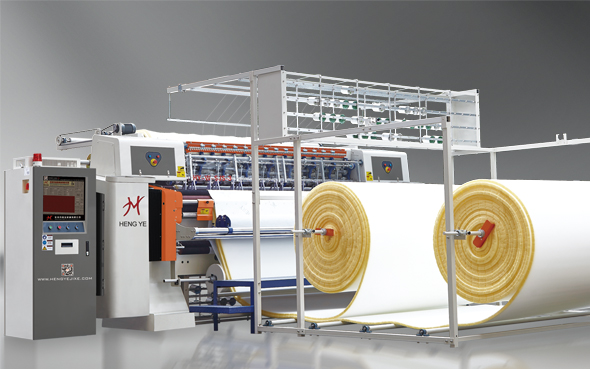

Appearance 2: Integrated electrical box

Appearance 1: split electric box

Appearance 2: Integrated electrical box

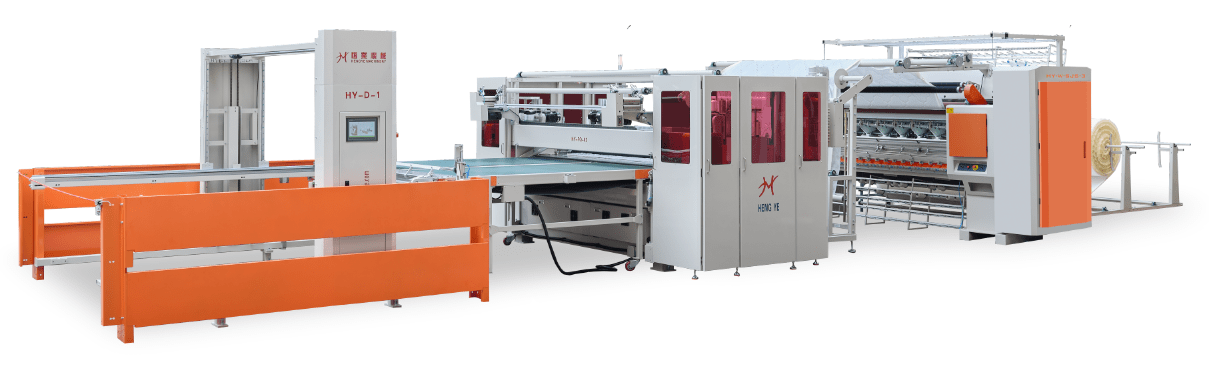

Quilting Machine | Hemming Machine | Cutter Machine |  Stacking Machine | Roller Device，We can provide a full perfect combination according to customer’s requirement ！

HY-W-SJS-3 Quilting Machine

HY-FQ-2  Four Side Hemming and Cutting Machine

HY-D-1 Stacking Machine
