[ B Series ]

HY-94-2，HY-118-2，HY-128-2

HY-94-3，HY-118-3，HY-128-3

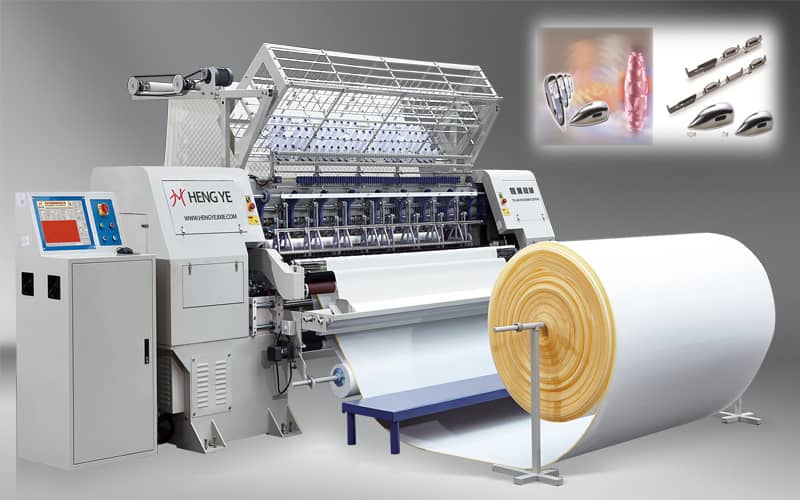

Computerized Lock Stitch Multi-needle Quilting Machine

[ home texile | clothing | bedding | soft furniture optimization ]

Purpose：It is widely used for quilting high-quality garments,quilt covers,hand bags,gloves,sleeping bags,pajamas,bed spreads,seat covers,plus material and  household ornaments.

Note：When you order,please make sure the type of the bobbin,10# or 7#.

1】Needle bar and press plate are connected by cam-free double-swinging device,which is with high precision and durable.This structure can avoid lubrication and dirty material effectively;

2】Optimized mechanical structure, realizing high rigidity machine body and structure,thus make the machine run faster and more stable;

3】Material rack separation structure ,can reduce the load of the rack effectively;

4】Adopting the new structure of press plate's adjusting makes the machine much simple;

5】Multi-span independent pattern (360°and 180° patterns are available);

6】Advanced and practical up thread-break detection unit;

7】Computerized automatic needle-lifting speed adjustment;

8】New generation of CNC system,advanced machine structure,high precision quilting,dispense with too much parameter adjustment or pattern modification during quilting;

9】Easy preparation of CAD drawing extremely precise;

10】Different patterns in each line can be quilted on 3.2m fabric and patterns can strongly combine;

11】Able to quilt simple embroidery patterns;

12】Fault detecting and indication enabling fast fault correction and return operation;

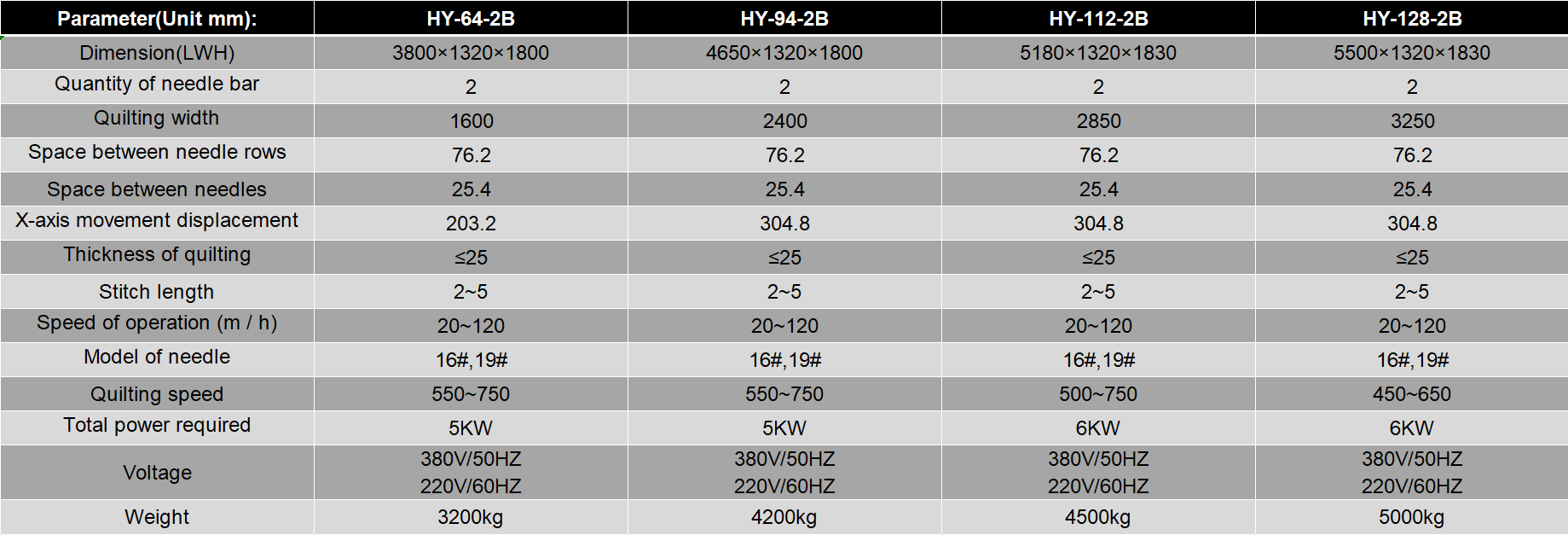

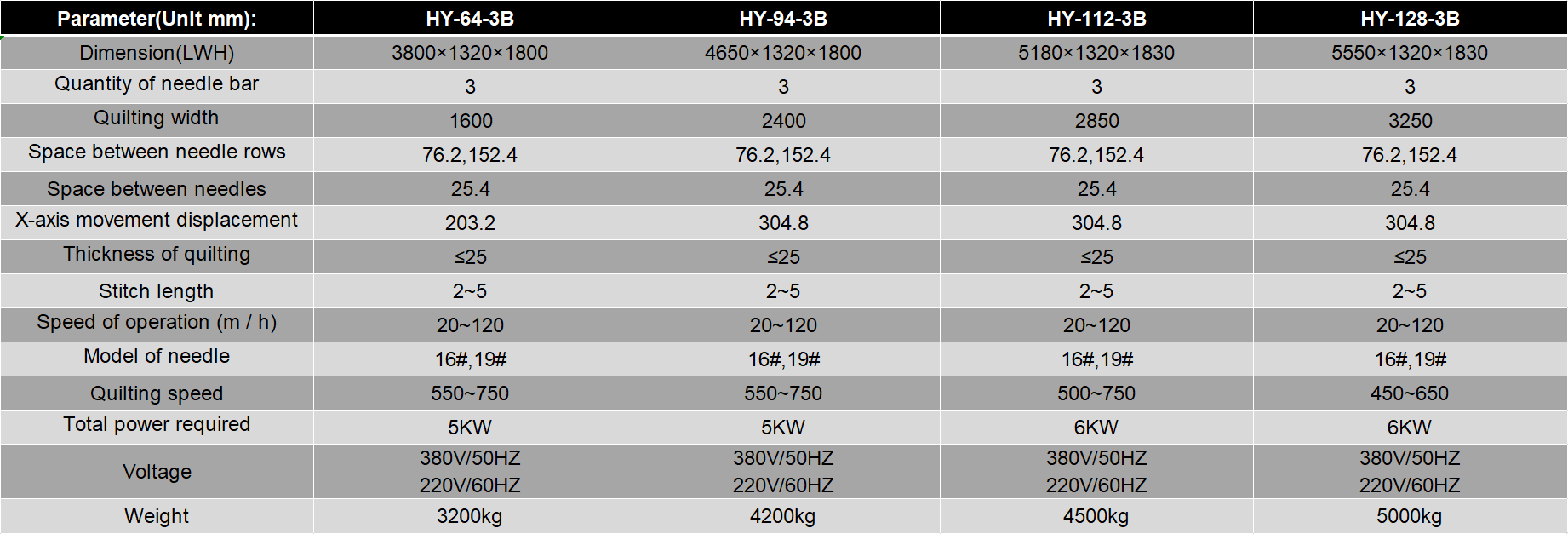

【 Unit：mm 】

94” 118“ 128”

Note：The space between the right stand and the wall is more than1200.In the case of overhaul,there should be a hole on the wall for taking out the shaft ( Unit:mm）
