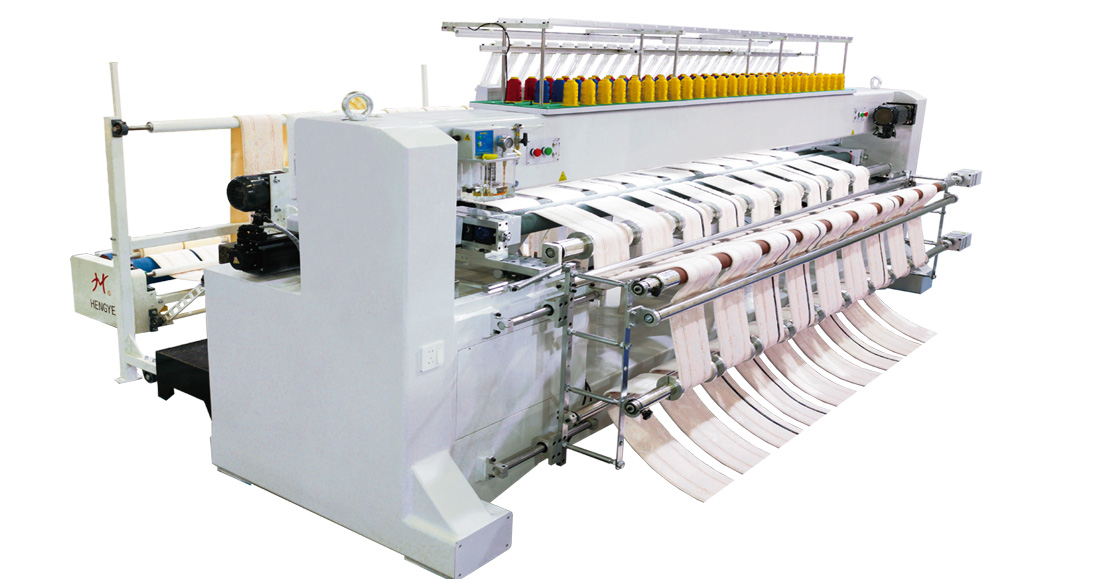

Parameter
HY-HX03-26T
Computerized Quilting And Embroidery Machine
Computerized Quilting And Embroidery Machine
home texile | clothing | bedding | soft furniture optimization
HY-HX03-26T
Computerized Quilting And Embroidery Machine
[ home texile | clothing | bedding | soft furniture optimization ]
Purpose : It is widely used for quilting high-quality garments, quilt covers,hand bags,gloves,sleeping bags, pajamas,bed spreads,seat covers, plus material and household With automatic slitting function.
4】With automatic rolling funciton.
5】Suitable for quilting panels as well as making mattress borders and mattress handles.
6】Easy to operate and use it . Simple to maintain, and highly efficient.
| 参数 （单位mm） | HY-HX03-26T | |
| Size(LWH) | 4530X1500X1880 mm | |
| Quilting width | 2550 mm | |
| quantity of needle heads | 26 | |
| Space between needles | 101.6 mm | |
| Stitch length | 1-12 mm | |
| Modle of needle | 11#-18# | |
| Rotating shuttle modle | 1.6 （23 mm） | |
| Quilting width | ≤25 mm | |
| quilting speed | 300~1000 RPM | |
| X-axis movement displacement | 305.8 mm | |
| Total power required | 6 kw | |
| Gross weight | 3200 KG | |
| Power supply | 3-phase 380V / 50HZ 3-phase 220V / 60HZ | |

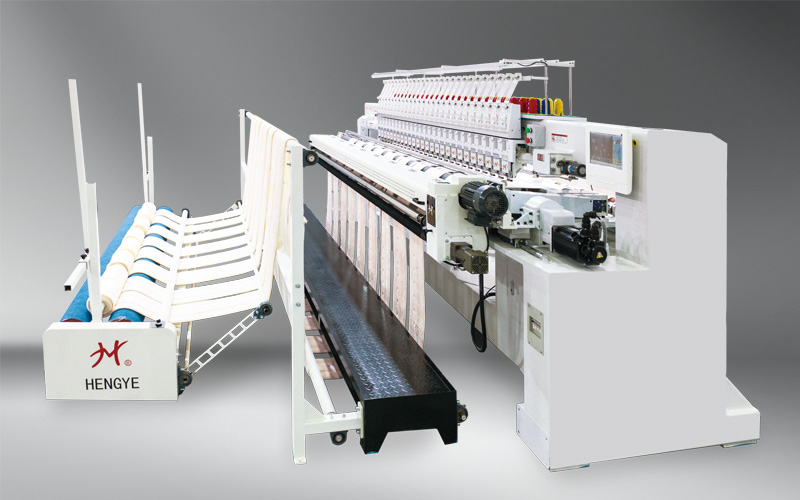

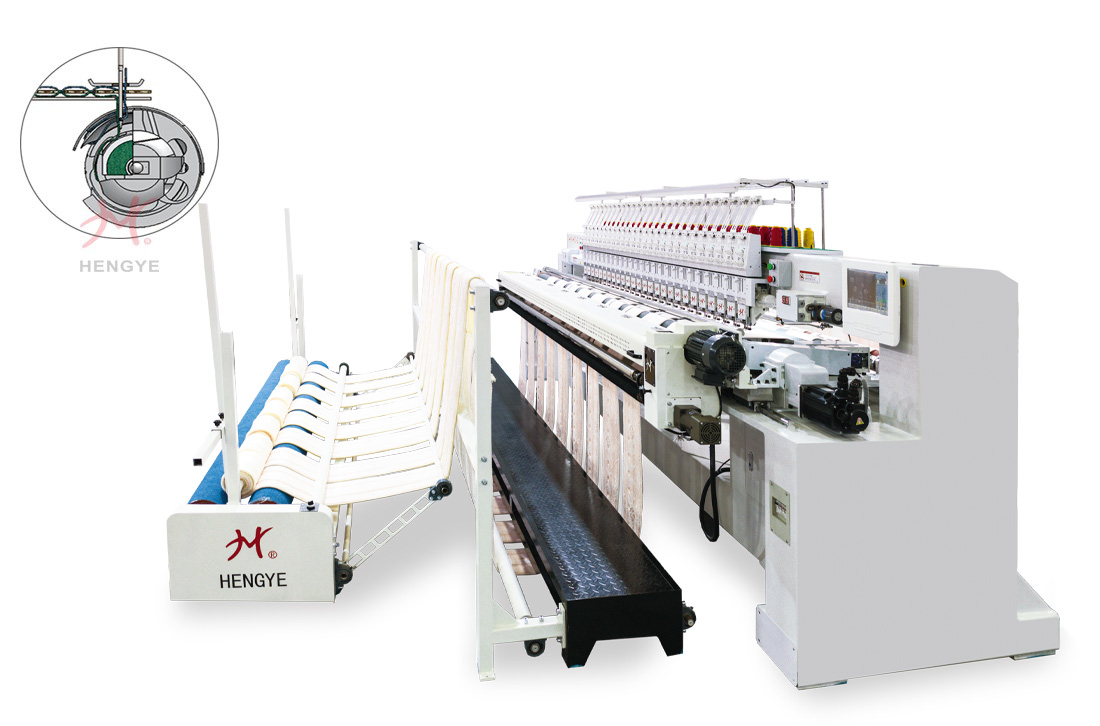

产品主机
Leading Brand
HY-HX03-26T

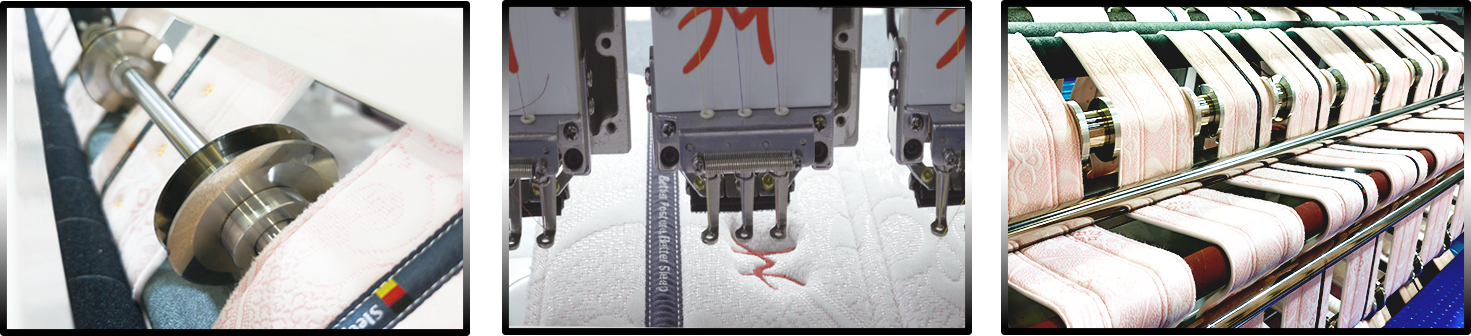

机械细节
Details
